S30403 / S31603 1 / 4 Inch Heat Exchanger Tube , Stainless Steel U Bend Welded Tube

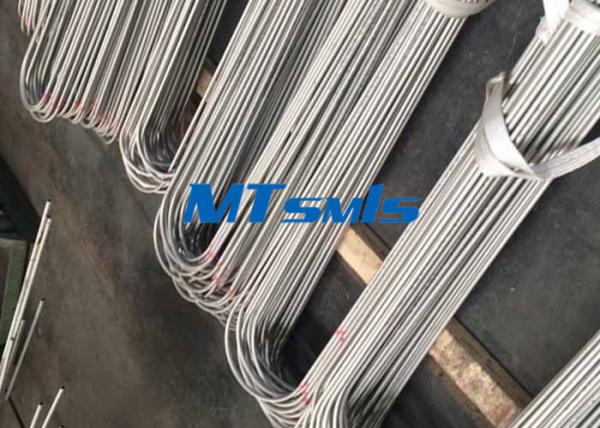

S30403 / S31603 1 / 4 Inch Stainless Steel U Bend Heat Exchanger Welded Tube

Process :

1 . We use Cold Drawn techonology to produce U bend tube

2 . U bend tubes produce will accordance to customer's drawings

3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate

4 . The radius is checked for its OD and wall thinning with the recommended specification

5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test

6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test

7 . Each tube is then hydro tested at the recommended pressure to check for leakage

Chemical Composition

	C(max)	Si(max)	P(max)	S(max)	Cr	Ni	Mo	Ti
TP304/1.4301	0.080	1.00	0.045	0.030	18.0-20.0	8.0-10.5
TP304L/1.4307	0.035	1.00	0.045	0.030	18.0-20.0	8.0-12.0
TP304H/1.4948	0.04-0.10	1.00	0.045	0.030	18.0-20.0	8.0-12.0
TP316/1.4401	0.080	1.00	0.045	0.030	16.0-18.0	11.0-14.0	2.0-3.0
TP316L/1.4404	0.035	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0
TP316Ti/1.4571	0.080	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0	0.7>5x(C+N)
TP321/1.4541	0.080	1.00	0.045	0.030	17.0-19.0	9.0-12.0		0.7>5x(C+N)
TP317L/1.4449	0.080	1.00	0.045	0.030	18.0-20.0	11.0-14.0	3.0-4.0
TP347H/1.4912	0.04-0.10	1.00	0.045	0.030	17.0-19.0	9.0-13.0
TP309S/1.4833	0.080	1.00	0.045	0.030	22.0-24.0	12.0-15.0	0.75
TP310S/1.4845	0.080	1.00	0.045	0.030	24.0-26.0	19.0-22.0	0.75

Grade	TP 304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H
Standard	ASTM A213 , ASTM A 269 , ASTM A 270 , EN10216-5 ; ASTM B 622 ; ASTM B516 ; ASTM A789 , etc
Size	OD :3.18mm to 101.6mm
	WT :0.5mm to 20mm
	Length : 12192mm
Advantage	Superior surface finish , better mechanical property ; more precise dimension ; perfect inspection method and inspection equipment
Application	Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .
Package	Plywood case

MTSCO heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

S30403 / S31603 1 / 4 Inch Heat Exchanger Tube , Stainless Steel U Bend Welded Tube

Specifications :

DN	NPS(Inch)	D(mm)	SCH5S	SCH10S	SCH40S	STD	SCH40	SCH80	XS	SCH80S	SCH160	XXS
6	1/8	10.30	-	1.24	1.73	1.73	1.73	2.41	2.41	2.41	-	-
8	1/4	13.70	-	1.65	2.24	2.24	2.24	3.02	3.02	3.02	-	-
10	3/8	17.10	-	1.65	2.31	2.31	2.31	3.20	3.20	3.20	-	-
15	1/2	21.30	1.65	2.11	2.77	2.77	2.77	3.73	3.73	3.73	4.78	7.47
20	3/4	26.70	1.65	2.11	2.87	2.87	2.87	3.91	3.91	3.91	5.56	7.82
25	1	33.40	1.65	2.77	3.38	3.38	3.38	4.55	4.55	4.55	6.35	9.09
32	1 1/4	42.20	1.65	2.77	3.56	3.56	3.56	4.85	4.85	4.85	6.35	9.70
40	1 1/2	48.30	1.65	2.77	3.68	3.68	3.68	5.08	5.08	5.08	7.14	10.15
50	2	60.30	1.65	2.77	3.91	3.91	3.91	5.54	5.54	5.54	8.74	11.07
65	2 1/2	73.00	2.11	3.05	5.16	5.16	5.16	7.01	7.01	7.01	9.53	14.02
80	3	88.90	2.11	3.05	5.49	5.49	5.49	7.62	7.62	7.62	11.13	15.24
90	3 1/2	101.60	2.11	3.05	5.74	5.74	5.74	8.08	8.08	8.08	-	-
100	4	114.30	2.11	3.05	6.02	6.02	6.02	8.56	8.56	8.56	13.49	17.12
125	5	141.30	2.77	3.40	6.55	6.55	6.55	9.53	9.53	9.53	15.88	19.05
150	6	168.30	2.77	3.40	7.11	7.11	7.11	10.97	10.97	10.97	18.26	21.95
200	8	219.10	2.77	3.76	8.18	8.18	8.18	12.70	12.70	12.70	23.01	22.23
250	10	273.10	3.40	4.19	9.27	9.27	9.27	15.09	12.70	12.70	28.58	25.40
