    ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed

    Ask Lasest Price
    Brand Name : MTSCO
    Model Number : MTSCOSSCT19
    Certification : ISO 9001 & PED & AD2000
    Price : 5500-10000USD/TON
    Payment Terms : T / T ; L / C
    Supply Ability : 300 Tons / Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed

    ASTM A269 TP316 / 316L Stainless Steel Welded Multi-core Tubing


    Where the multi-core coiled tubing used ?


    Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.

    nditions.


    Ordering code number

    Tube size

    (O.D x Thickness x Core)

    Overall Diameter

    (.mm)

    Sheath Thickness

    (.mm)

    Bundle Weight

    (kg/M)

    Max Pressure

    (Bar)

    HTD-16×1.0×181.00.15

    Working:180Bar


    Test:270Bar

    HTD-26×1.0×2202.00.60
    HTD-36×1.0×3212.00.75
    HTD-46×1.0×4242.00.82
    HTD-56×1.0×5252.00.90
    HTD-66×1.0×6272.01.04
    HTD-76×1.0×7272.01.15
    HTD-86×1.0×8322.21.40
    HTD-98×1.0×1101.00.28
    HTD-108×1.0×2241.80.89
    HTD-118×1.0×3262.01.12
    HTD-128×1.0×4282.01.33
    HTD-138×1.0×5312.01.67
    HTD-148×1.0×6342.02.00
    HTD-158×1.0×7342.02.15
    HTD-168×1.0×8402.22.60
    HTD-1710×1.0×1131.00.34
    HTD-1810×1.0×2281.81.18
    HTD-1910×1.0×3312.01.60
    HTD-2010×1.0×4342.01.97
    HTD-2110×1.0×5372.02.20
    HTD-2210×1.0×6402.02.40
    HTD-2310×1.0×7402.02.52
    HTD-2410×1.0×8482.53.20
    HTD-2512×1.0×1141.00.41
    HTD-2612×1.0×2342.01.35
    HTD-2712×1.0×3362.01.96
    HTD-2812×1.0×4392.02.37
    HTD-2912×1.0×5432.02.70
    HTD-3012×1.0×6472.03.00
    HTD-3112×1.0×7472.03.14
    HTD-3212×1.0×8552.53.90

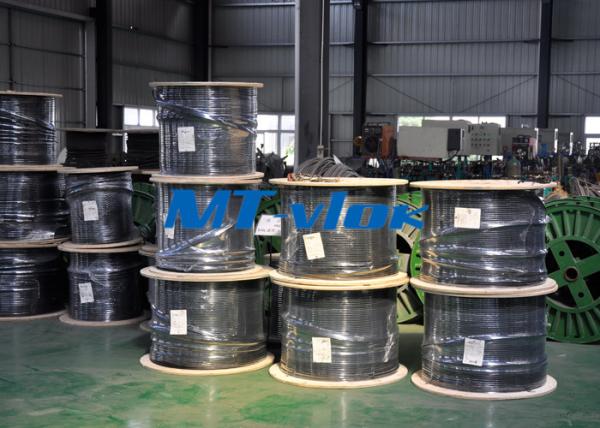

    The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
