TP304 / 304L Welded Stainless Steel Coiled Tubing For Multi-core
Tube

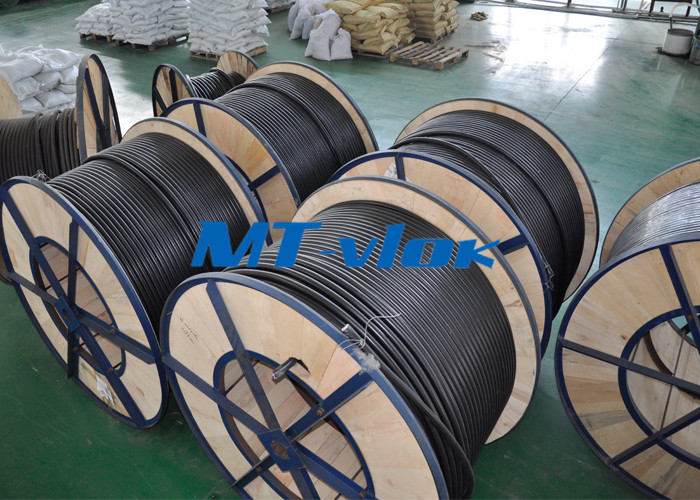

Multi-core Coiled Tube:
The multi-core tube consists of one to nine stainless steel tubes
laid up spirally inside an extruded outer PVC sheath. For easy
identification and protection purposes each individual tube is PVC
sheathed in a different color. The extruded outer sheath is made of
oil and seawater resistant, weatherproof, flame retardant,
corrosion, and acid resistant PVC.
The multi-core tube (outer sheath) is continuously marked at every
one meter throughout the entire length for easy installation. Heat
shrinkable products provide complete water sealing, abrasion and
corrosion protection under all conditions.
Where the multi-core coiled tubing used?
MTSCO’ s multi-core tubes are used for pneumatic and hydraulic
remote control, measuring, and monitoring systems. materials are
ASTM TP316/ 316L, TP304/304L.
| Ordering code number | Tube size (O.D x Thickness x Core) | Overall Diameter (.mm) | Sheath Thickness (.mm) | Bundle Weight (kg/M) | Max Pressure (Bar) |
| HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 | Working:180Bar
Test:270Bar |
| HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 |
| HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 |
| HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 |
| HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 |
| HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 |
| HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 |
| HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 |
| HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 |
| HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 |
| HTD-11 | 8×1.0×3 | 26 | 2.0 | 1.12 |
| HTD-12 | 8×1.0×4 | 28 | 2.0 | 1.33 |
| HTD-13 | 8×1.0×5 | 31 | 2.0 | 1.67 |
| HTD-14 | 8×1.0×6 | 34 | 2.0 | 2.00 |
| HTD-15 | 8×1.0×7 | 34 | 2.0 | 2.15 |
| HTD-16 | 8×1.0×8 | 40 | 2.2 | 2.60 |
| HTD-17 | 10×1.0×1 | 13 | 1.0 | 0.34 |
| HTD-18 | 10×1.0×2 | 28 | 1.8 | 1.18 |
| HTD-19 | 10×1.0×3 | 31 | 2.0 | 1.60 |
| HTD-20 | 10×1.0×4 | 34 | 2.0 | 1.97 |
| HTD-21 | 10×1.0×5 | 37 | 2.0 | 2.20 |
| HTD-22 | 10×1.0×6 | 40 | 2.0 | 2.40 |
| HTD-23 | 10×1.0×7 | 40 | 2.0 | 2.52 |
| HTD-24 | 10×1.0×8 | 48 | 2.5 | 3.20 |
| HTD-25 | 12×1.0×1 | 14 | 1.0 | 0.41 |
| HTD-26 | 12×1.0×2 | 34 | 2.0 | 1.35 |
| HTD-27 | 12×1.0×3 | 36 | 2.0 | 1.96 |
| HTD-28 | 12×1.0×4 | 39 | 2.0 | 2.37 |
| HTD-29 | 12×1.0×5 | 43 | 2.0 | 2.70 |
| HTD-30 | 12×1.0×6 | 47 | 2.0 | 3.00 |
| HTD-31 | 12×1.0×7 | 47 | 2.0 | 3.14 |
| HTD-32 | 12×1.0×8 | 55 | 2.5 | 3.90 |
Multi-core Coiled Tube Standard:
| ASTM A269 Standard |
| Elements | TP304 ( S30400 ) |
| (C) Carbon, max : | 0.08 |
| (Mn) Manganese, max : | 2 |
| (P) Phosphorus, max : | 0.045 |
| (S) Sulfur, max : | 0.03 |
| (Si) Silicon, max : | 1 |
| (Ni) Nickel : | 8.0 - 11.0 |
| (Cr) Chromium : | 18.0 - 20.0 |
| (Mo) Molybdenum : | … |
| (Fe) Iron : | … |
| (Cu) Copper : | … |
| (N) Nitrogen : | … |
