S31603/TP316L Stainless Steel Encapsulated Control Line Oil
Exploitation
An increasing number of projects in the oil service industry
require the use of continuous lengths of stainless steel control
lines. They are used in a variety of applications, including
chemical injection, hydraulic control, instrumentation umbilicals
and flowline control.
MTSCO offers products for all of these applications, helping
customers reduce operating costs and improve recovery methods.
| Material: TP316L, S32205, Alloy825/N08825, Alloy400/ N04400,
Alloy625 N06625 |  |
| Outer Diameter: 1/4“, 3/8”,1/2“ |
| Wall Thickness: 0.035”,0.049“,0.065” |
| Length : PER FT |
| Application : Inhibitor Supply control |
| Pressure Rating : 15000 Psi |
| Type : HYDRAULIC FLAT PACK |
| Additional Material Specs : PVDF Encapsulation |
Size : 3lines x 1/4" 0.049WT
|
| Additional Features : Color coded, oil filling, fluid filling |
Encapsulation Size : 33 x 11mm
|
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
Test :
| 1 | 100% PMI , Spectro Chemical Aanlysis Test For Raw Material |
| 2 | 100% Dimension & Visual Examination |
| 3 | Mechanical Properties Test Include Tension Test , Flaring Test (
For Seamless Tube / Pipe ) , Hardness Test , Reversed Flattening
Test |
| 4 | 100% Hydrostatic Test Or 100% Non-Destructive Test (ET Or UT) |
| 5 | Straightness Test ( Optional ) |
| 6 | Roughness Test ( Optional ) |
| 7 | Intergranular Corrosion Test ( Optional ) |
| 8 | Impact Test ( Optional ) |
| 9 | Grain Size Determinations ( Optional ) |
| 10 | All The Tests And Inspection Result Need To Be Showed In Reports
Accorance To Standard And Specification . |

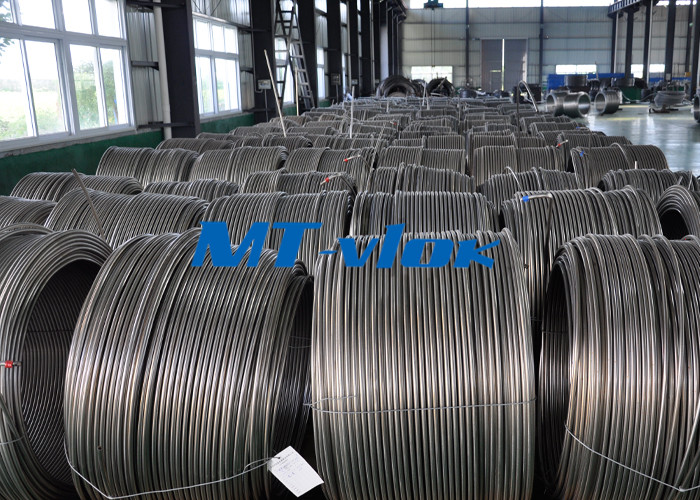

MTSCO is a leading manufacturer who is specialized in seamless
coiled tubing produce . Stainless steel seamless coiled tubing
final surface is bright annealed. According to standard very
strictly, tubes which produced by us always have correct OD and WT
tolerance. They are very popular in military, semiconductor,
pharmaceutical biotechnology, precision instruments, hydraulic
parts, chemicals industry, boilers and heat exchangers, aerospace
industry, automotive industry, electronics, petroleum exploration,
precision machinery, rail transportation, shipbuilding plants,
air-conditioning industry, solar industry, water heater industry
etc. They can be used in many others industries also .
