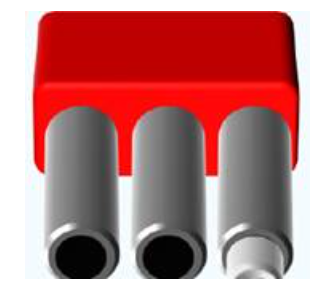

3/8" Stainless Steel Welded Control Line 15000psi With Hydraulic
Flat Pack
MTSCO has been supplying industrial tubing to the oil and gas
industry for more than a decade. In recent years, we have continued
to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection
control lines. Our coiled tubing has been successfully used in certain harsh
subsea and downhole conditions, and through continuous research and
development, is able to meet the stringent quality requirements of
the oil and gas industry and other industries.
| Material: TP316L, S32205, Alloy825/N08825, Alloy400/ N04400, Alloy625 N06625 |  |
| Outer Diameter: 1/4“, 3/8”,1/2“ |
| Wall Thickness: 0.035”,0.049“,0.065” |
| Length : PER FT |
| Size : 3lines x 1/4" 0.049WT |
Encapsulation Size : 33 x 11mm |
Control line application:
Application : ICV remote control,
Pressure Rating : 15000 Psi
Type : HYDRAULIC FLAT PACK
Additional Material Specs : PVDF Encapsulation
Additional Features : Color coded, oil filling, fluid filling
An increasing number of projects in the oil service industry
require the use of continuous lengths of stainless steel control
lines. They are used in a variety of applications, including
chemical injection, hydraulic control, instrumentation umbilicals
and flowline control.
MTSCO offers products for all of these applications, helping
customers reduce operating costs and improve recovery methods.
We can provide continuous tubing for stainless steel, duplex and
nickel alloy control lines. Sizes, lengths, pressure levels,
packaging methods, etc. can all be customized to improve your oil
recovery methods and reduce operating costs.
Inspection of kinds of stainless steel tube:
1 | 100% PMI , Spectro Chemical Aanlysis Test For Raw Material |
2 | 100% Dimension & Visual Examination |
3 | Mechanical Properties Test Include Tension Test , Flaring Test (
For Seamless Tube / Pipe ) , Hardness Test , Reversed Flattening
Test |
4 | 100% Hydrostatic Test Or 100% Non-Destructive Test (ET Or UT) |
5 | Straightness Test ( Optional ) |
6 | Roughness Test ( Optional ) |
7 | Intergranular Corrosion Test ( Optional ) |
8 | Impact Test ( Optional ) |
9 | Grain Size Determinations ( Optional ) |
10 | All The Tests And Inspection Result Need To Be Showed In Reports
Accorance To Standard And Specification . |
About MTSCO:
Who MTSCO IS?
MTSCO established in 2006, during many years’ development, now becomes a large and
professional industrial piping system provider, serving customers
from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230,
R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810,
N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH,
15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and
professional inspection reports contain two parts, one is
self-inspection of the requirements beyond ISO9001, which is 100%
inspected by our own QC; another is 100% inspected by professional
QC teams.
For more information, you are welcome to contact us by email. Thank
you for your interest.
